- Front Blade X
| Model | Width at 30 Degrees | Weight (lbs) | Angle | MSRP |
|---|---|---|---|---|
| FBXM-84 | 73" | 720 | Manual | $3,900 |
| FBXM-96 | 83" | 746 | Manual | $4,000 |
| FBXM-108 | 94" | 772 | Manual | $4,515 |
| FBXH-84 | 73" | 745 | Hydraulic | $4,700 |
| FBXH-96 | 83" | 771 | Hydraulic | $4,805 |
| FBXH-108 | 97" | 797 | Hydraulic | $5,315 |

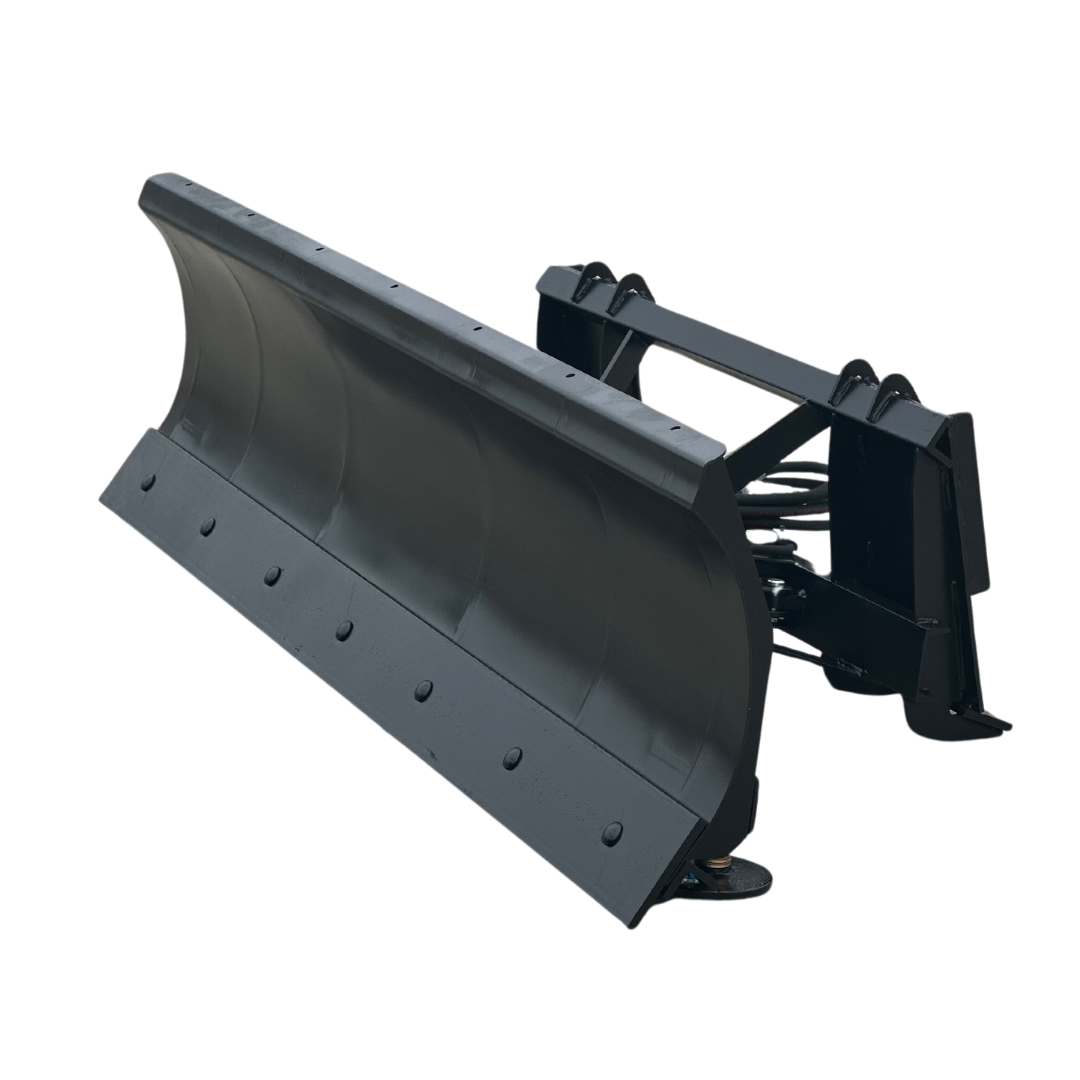

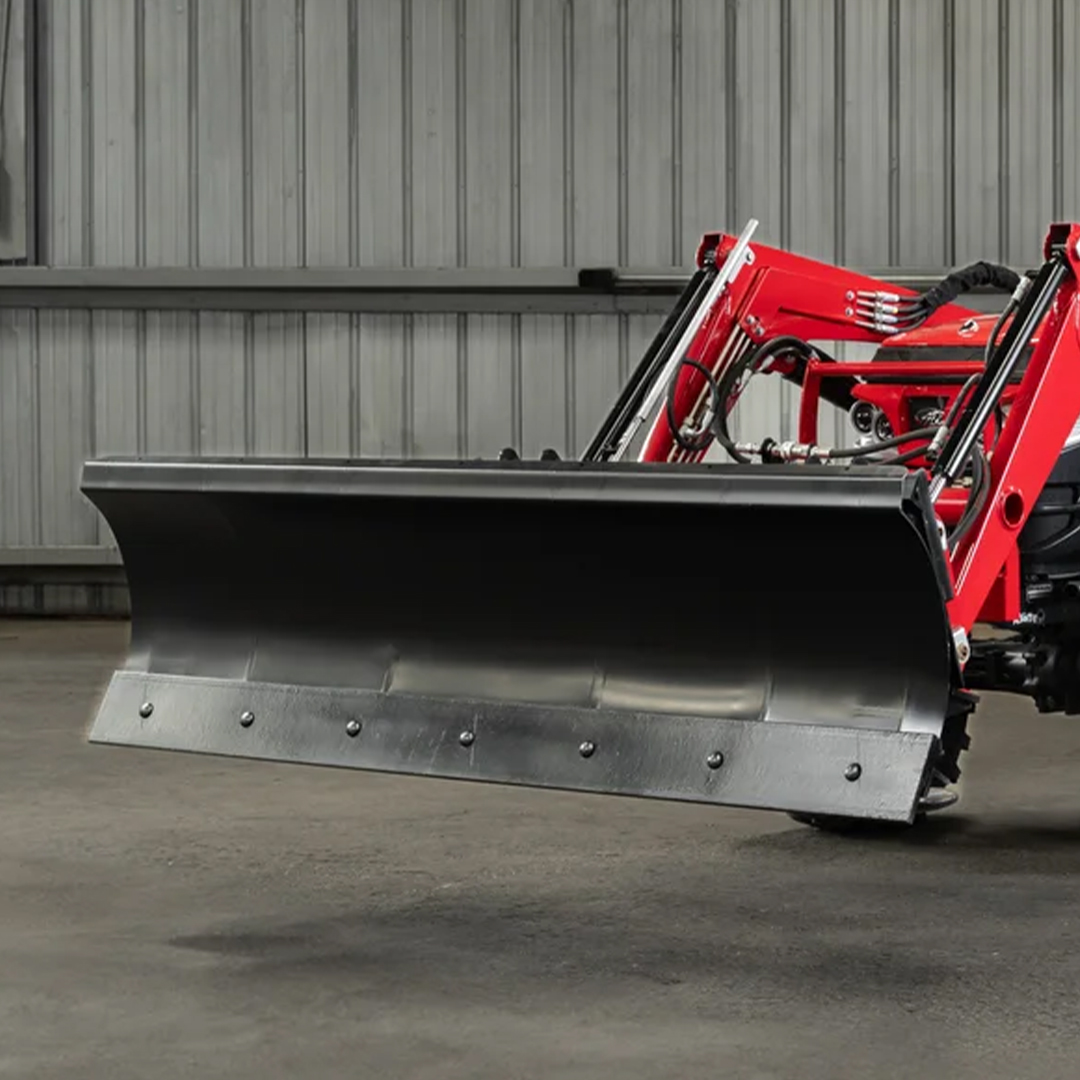

Front Blade X for 50 to 90 hp Tractors [FBX]
Product Information
The Front Blade X is for 50 to 90 Horsepower tractors and is used for pushing snow, sand, dirt, manure, gravel, etc. We can build your front blade X with most any type quick attach or pin on connection for no additional charge.
The Front Blade X comes in 84″, 96″ and 108″ widths and angles up to 30 degrees to the right or left. A manual front blade X is available with 5 positions; straight, 15 degrees left or right and 30 degrees left or right.
Key Benefits
- Replaceable Cutting Edge 1/2″ thick by 6″ wide and reversible.
- Skid shoes prevent gouging by maintaining the blade at a preset height.
- Blade height is approximately 30″.
- Spring Trip Blade design so that blade pivots when it hits an obstruction.
- Two additional springs can be added easily.
- Hydraulic blade uses two double acting welded construction cylinders. Includes Cross Over Relief Valve.
Options
- Polyurethane cutting edge available for snow removal.
- Radius dozer cutting edge available.
- Easily add cylinders and hoses to Manual blade to convert to Hydraulic blade
